High-impact Tianjin Dagu ABS DG-417 plastic resin features 20 g/10 min MFR and 200 J/m impact strength, ideal for home appliance and automotive injection molding.
| Manufacturer | Tianjin Dagu |
|---|---|
| MFR | 20 g/10 min |
| Flexural Modulus | 2265 MPa |
| Izod Notched Impact | 200 J/m |
Note: See the product description for additional technical specifications

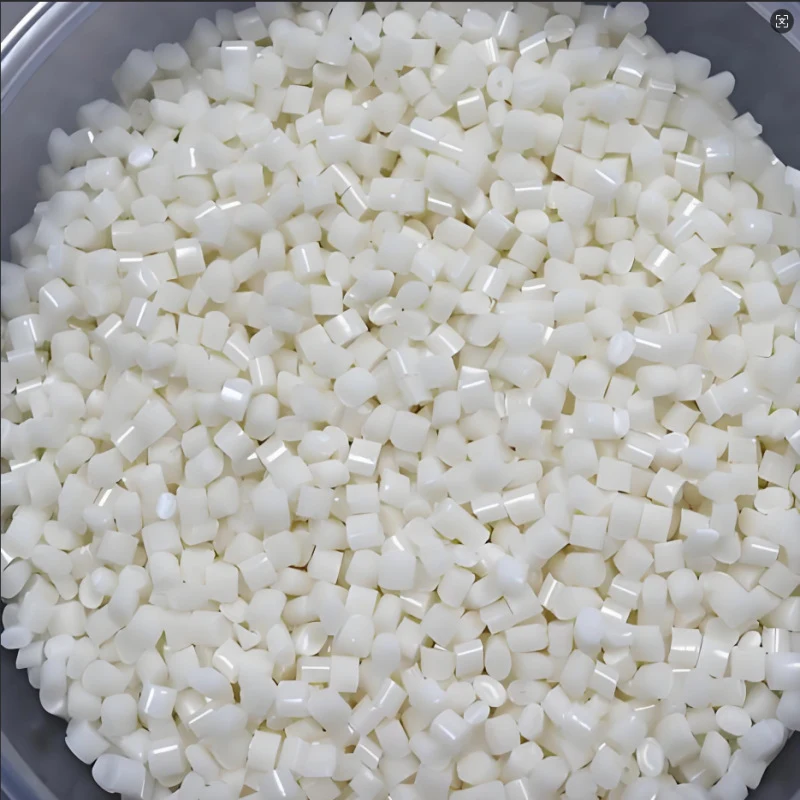

Tianjin Dagu ABS DG-417 is a high-performance acrylonitrile-butadiene-styrene (ABS) copolymer resin manufactured by the well-known Chinese petrochemical producer Tianjin Dagu Chemical Co., Ltd. As a star grade in the engineering plastics supply chain, ABS DG-417 features a standard milk-white pellet physical appearance with uniform texture, making it easy to process and mold.
In industrial applications, Tianjin Dagu ABS DG-417 is renowned for its outstanding high impact resistance and excellent processing rheology. This resin achieves a superb physical balance among rigidity, hardness, and toughness, offering not only short molding cycles but also high surface gloss on molded parts. With stable batch quality and excellent cost-efficiency, DG-417 is widely used in home appliance housings, electrical and electronic components, automotive interior and exterior trims, and precision industrial structural parts, making it a trusted core choice for global B2B buyers and injection molding factories.
The following table shows the typical physical properties of Tianjin Dagu ABS DG-417 resin:
| Physical Properties | Typical Value | Unit | Test Standard |
| Melt Mass-Flow Rate (220 degrees C, 10 kg) | 20 | g/10 min | ASTM D1238 |
| Mechanical Properties | Typical Value | Unit | Test Standard |
| Tensile Stress(50 mm/min) | 47 | MPa | ASTM D638 |
| Flexural Strength(2 mm/min) | 65 | MPa | ASTM D790 |
| Flexural Modulus(2 mm/min) | 2265 | MPa | ASTM D790 |
| Izod Notched Impact Strength(23 degrees C, 3.2 mm) | 200 | J/m | ASTM D256 |
| Thermal Properties | Typical Value | Unit | Test Standard |
| Vicat Softening Temperature(50N, 50 degrees C/hr) | 101 | degrees C | ASTM D1525 |
The technical data sheet (TDS) of Tianjin Dagu ABS DG-417 material from Tianjin Dagu corporation, if there are differences, please refer to the official website of Tianjin Dagu.
Outstanding Impact Strength: The Izod notched impact strength reaches 200 J/m, demonstrating excellent resistance to mechanical drops and shock cracking, effectively protecting internal precision components.
Balanced Mechanical Properties: It possesses a tensile stress of 47 MPa and a flexural modulus of 2265 MPa, granting high rigidity, high hardness, and low creep characteristics to the final injection-molded parts.
Excellent Processability: With a melt mass-flow rate (MFR) of 20 g/10 min, it features fast melt flow speed and a wide processing window, perfectly fitting complex structural parts and thin-walled parts injection molding, effectively shortening molding cycles and reducing defect rates.
High Surface Gloss: The molded parts have a smooth and flat surface with strong adhesion, which is highly convenient for subsequent secondary operations such as painting, electroplating, and ultrasonic welding.
Stable Dimensional Stability: It has a low mold shrinkage rate, meaning parts do not easily warp or deform under long-term alternating loads and mechanical friction.
Home Appliances: Based on its high surface gloss and impact resistance, it is widely used in manufacturing air conditioner panels, refrigerator interior parts, washing machine control panels, vacuum cleaner housings, rice cookers, and microwave oven housings.
Consumer Electronics & Electricals: Suitable for manufacturing computer monitor housings, router casings, office automation equipment housings such as copiers and printers, as well as various switch panels, junction boxes, and socket housings.
Automotive Components: In the automotive industry, it is used to process dashboard frameworks, door trim panels, rearview mirror housings, radiator grilles, and air conditioning vent assemblies, contributing to vehicle lightweighting.
Civil & Precision Manufacturing: Used for manufacturing high-grade toys, luggage shells, instrument enclosures, toolboxes, and various industrial machinery accessories that need to withstand certain impact loads.
Q1: What pre-molding drying conditions are required for Tianjin Dagu ABS DG-417?
A1: ABS has a certain degree of moisture absorption. If the moisture content exceeds the limit, silver streaks or bubbles will appear on the injection-molded surface. It is recommended to pre-dry the material using a conventional hot air circulating oven or a dehumidifying dryer before injection molding. The recommended drying conditions are: temperature 80 – 85 degrees C, drying time 2 – 4 hours, ensuring the internal moisture content of the resin is controlled below 0.1%.
Q2: What is the core advantage of ABS DG-417 compared to PC (Polycarbonate) or PMMA (Acrylic)?
A2: Compared to PC materials, ABS DG-417 has a lower processing temperature (lower processing energy consumption) and significantly better melt flowability than PC, making it easier to injection mold complex and thin-walled structural parts, while the comprehensive cost is more than 30% lower. Compared to PMMA materials, although ABS DG-417 is not a transparent material, its impact toughness far exceeds PMMA, providing a very high safety factor against shattering when subjected to external impacts.
Q3: Does this material comply with environmental certifications such as RoHS standards?
A3: Yes. As an authentic original manufacturer resin raw material, Tianjin Dagu ABS DG-417 strictly complies with global mainstream environmental regulations at factory exit, including EU RoHS Environmental Standards and REACH Regulations. If you require specific test reports (TDS/MSDS/RoHS) for international trade customs clearance or supply matching for major terminal factories, please contact our sales team directly to request the official authoritative certification documents.
