Lotte Chemical PC-1100 is a general-purpose high-impact polycarbonate resin offering exceptional impact strength, high transparency, and superior thermal stability, making it ideal for demanding electronic housings, automotive components, and optical applications.
| Manufacturer | Lotte |
|---|---|
| Density | 1.20 g/cm³ |
| MFR | 10 g/10min |
| Tensile Strength at Yield | 61.8 MPa |
| Elongation at Break | >100 % |
Note: See the product description for additional technical specifications
Manufacturer: Lotte Chemical
Category: Polycarbonate (PC) Injection Molding Grade Resin

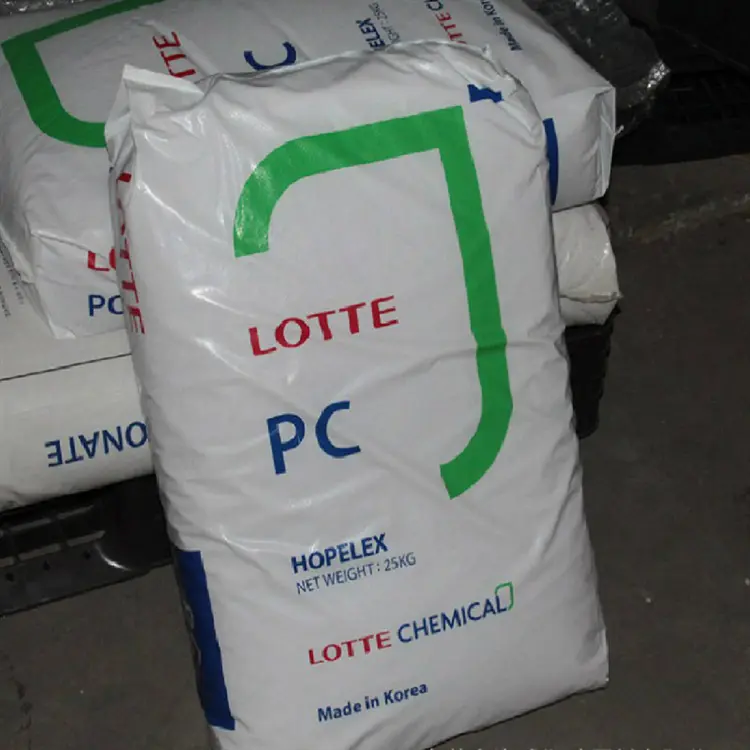

Physical Appearance: Natural transparent pellets; uniform and clean particles free from black specks and impurities, possessing excellent optical transmission performance.
Lotte Chemical PC-1100 is a general-purpose high-impact polycarbonate (PC) resin introduced by Lotte Chemical, enjoying a stable reputation and wide industrial recognition in the global engineering plastics market. This grade combines excellent mechanical strength, superior heat resistance, and high transparency, adapting to mainstream thermoplastic injection molding processes. It primarily targets B2B procurement clients and manufacturers in electronics, electrical appliances, automotive components, optical equipment, and consumer goods sectors.
| Property | Test Condition | Test Value | Test Unit | Test Standard |
| Density | — | 1.2 | g/cm³ | ASTM D792 |
| Melt Index, Mass | 300 ℃, 1.2 kg | 10 | g/10min | ASTM D1238 |
| Mold Shrinkage, Parallel | — | 0.5-0.7 | % | ASTM D955 |
| Property | Test Condition | Test Value | Test Unit | Test Standard |
| Tensile Strength, Yield | 50 mm/min | 61.8 | MPa | ASTM D638 |
| Tensile Strain, Break | 50 mm/min | > 100 | % | ASTM D638 |
| Flexural Modulus | 10 mm/min | 2350 | MPa | ASTM D790 |
| Flexural Strength, Yield | 10 mm/min | 90.2 | MPa | ASTM D790 |
| Izod Impact Strength, Notched | 23 ℃, 3.18 mm | 780 | J/m | ASTM D256 |
| Property | Test Condition | Test Value | Test Unit | Test Standard |
| Heat Deflection Temperature, Unannealed | 0.45 MPa | 143 | ℃ | ASTM D648 |
| Heat Deflection Temperature, Unannealed | 1.8 MPa | 132 | ℃ | ASTM D648 |
| Vicat Softening Point | 120 ℃/h, 50 N, Rate B 0, Loading 2 | 150 | ℃ | ASTM D1525 |
| Property | Test Condition | Test Value | Test Unit | Test Standard |
| Refractive Index | — | 1.585 | — | ASTM D542 |
| Light Transmittance | — | 89 | % | ASTM D1003 |
| Haze | — | < 0.8 | % | ASTM D1003 |
The technical data sheet (TDS) of Lotte PC-1100 PC material from Lotte Chemical corporation, if there are differences, please refer to the official website of Lotte Chemical.
Outstanding Impact Resistance: Features a notched Izod impact strength of up to 780 J/m, offering excellent drop and high-pressure impact resistance to ensure the structural safety of end products.
High Transparency and Low Haze: Reaches a light transmittance of 89% and a haze of below 0.8%, delivering exceptional optical performance to meet the demands of high-end optical and transparent aesthetic applications.
Superior Thermal Stability: Exhibits outstanding heat deflection temperature and Vicat softening point performance (reaching 132 ℃ at 1.8 MPa), making it resistant to deformation under high-temperature working environments.
Excellent Processing Flowability: Possesses a melt index of 10 g/10min (300 ℃/1.2 kg), ensuring uniform flow during injection molding and a wide processing window suitable for mold filling of complex, precision parts.
Good Dimensional Stability: Features a low and stable mold shrinkage rate (0.5-0.7%), effectively reducing warpage after injection molding and ensuring tolerance precision in mass production.
Electronic and Electrical Housings: Widely applied in various home appliance panels, electronic product casings, switch sockets, and electrical insulation components.
Automotive Industrial Parts: Utilized for manufacturing automotive lamp lenses, instrument panel assemblies, interior trim parts, and high-strength structural brackets.
Optical and Safety Protection: Suitable for producing sunglass lenses, protective face shields, surveillance camera housings, and various transparent optical instrument components.
Consumer Goods and Medical Devices: Applicable for high-end water cups, storage containers, office automation equipment parts, and basic medical device housings.
Q1: Is drying treatment required before injection molding processing of Lotte PC-1100?
A: Yes. Polycarbonate (PC) is a hygroscopic polymer and must be thoroughly dried prior to processing. It is recommended to use a dehumidifying dryer to dry the material at 100-120 ℃ for 3-4 hours, strictly controlling the moisture content below 0.02% to prevent quality defects such as hydrolysis, silver streaks, or bubbles during high-temperature injection molding.
Q2: What are the core advantages of PC-1100 compared to PMMA (acrylic) materials?
A: Although PMMA has excellent surface hardness and light transmittance, the impact strength (notched Izod impact of 780 J/m) and toughness of Lotte PC-1100 far exceed those of PMMA, making it less prone to brittle fracture. Furthermore, PC-1100 possesses a higher heat deflection temperature (132 ℃ @ 1.8 MPa), making it better suited for industrial applications subjected to mechanical stress and elevated temperature environments.
Q3: Does this grade comply with environmental and regulatory certification requirements?
A: The production of Lotte Chemical PC-1100 complies with international environmental standards and meets RoHS and REACH regulatory requirements. If your export project involves food contact or specific industry safety certifications (such as UL flame retardancy and related food-contact compliance documents), it is recommended to verify the corresponding batch’s official compliance reports with us prior to formal volume procurement.
